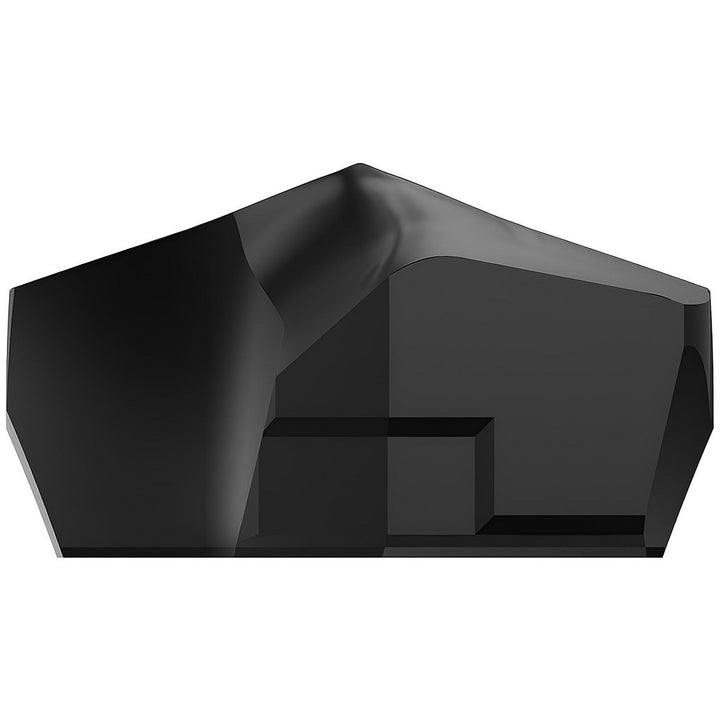

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690719

Kennametal

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690719

MFR# 3690719Series KSEM

$214.56List $261.91 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN

Description

The Kennametal 3690719 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0236
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5115
Height (mm)13.00
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size5
Iso numberKSEMP2600HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.5115
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
