Kennametal

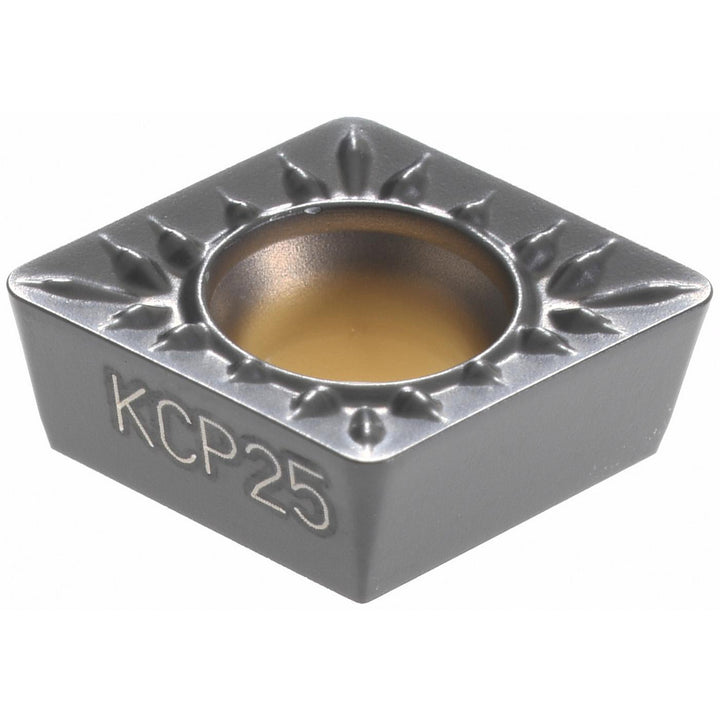

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3744893
MFR# 3744893ISO/ANSI# CPMT09T308Series Screw-On
$29.66List $36.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3744893 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPMT3252
Ansi size code3252
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCPMT3252MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCPMT
Insert thickness in5/32
Iso insert codeCPMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3744893
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle12
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
