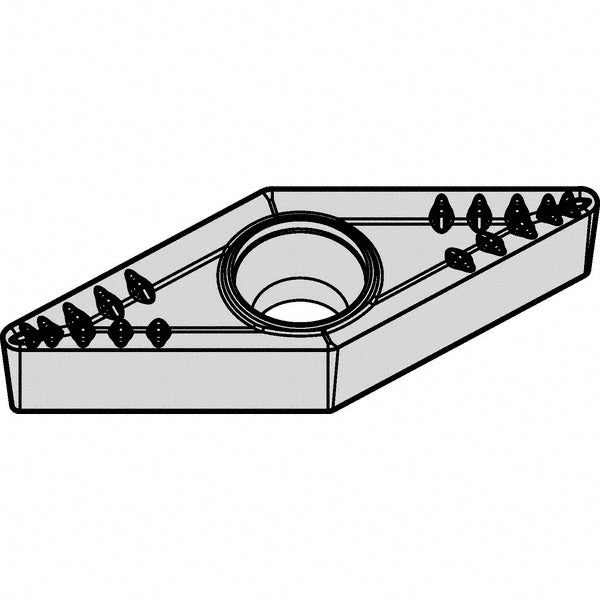

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3744912

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3744912

MFR# 3744912ISO/ANSI# VBMT160408Series Screw-On

$36.23List $44.22 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3744912 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeVBMT332
Ansi size code332
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBMT332MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number3744912
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle12
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
