Kennametal

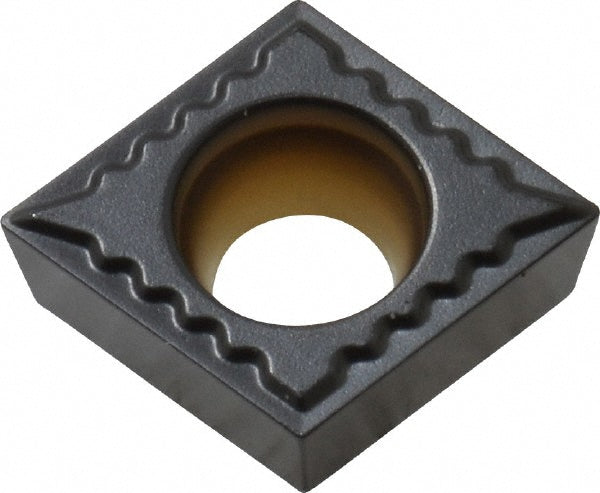

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCP05, TiCN - Kennametal 3746126
MFR# 3746126ISO/ANSI# CCMT09T302Series Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3746126 is a carbide indexable insert, grade KCP05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMT32505
Ansi size code32505
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT32505UF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32505
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T302
Iso size code09T302
Length range0.3000 - 0.4000
Manufacturers catalog number3746126
Manufacturer gradeKCP05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
