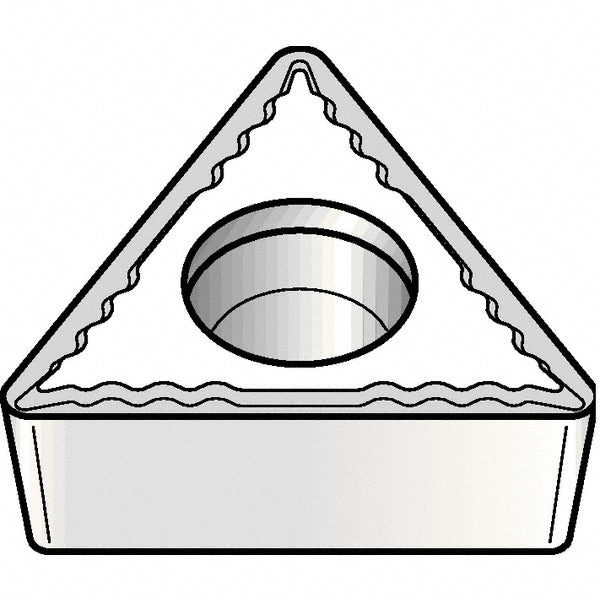

T - Triangle 1/4" IC Carbide Insert, Grade KCP05, TiCN - Kennametal 3746138
MFR# 3746138ISO/ANSI# TPMT110204Series Screw-On
$28.28List $34.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCP05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3746138 is a carbide indexable insert, grade KCP05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTPMT2151
Ansi size code2151
Chip breakerUF
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle60
Industry standard numberTPMT2151UF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTPMT
Insert thickness in3/32
Iso insert codeTPMT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number3746138
Manufacturer gradeKCP05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
