Kennametal

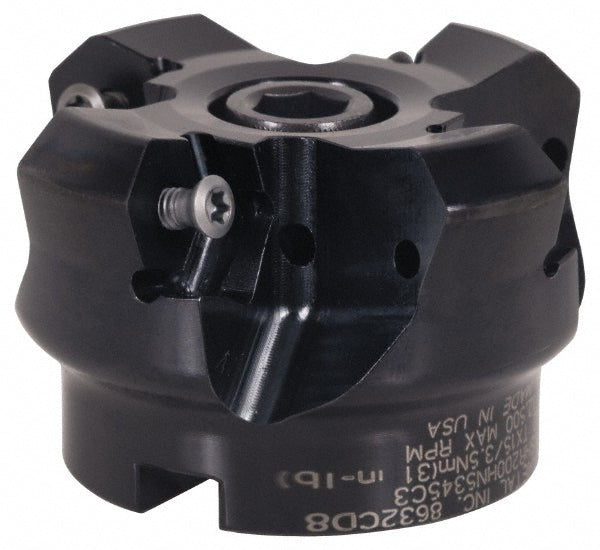

Indexable Milling Cutters - Kennametal 3747128
MFR# 3747128Series KSHR
$1,667.56List $2,035.48
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes10
Description
The Kennametal 3747128 indexable milling cutters. Series KSHR.
Specifications
Arbor hole diameter in2
Compatible insert size codeHNGJ 535ANENLD
Coolant throughNo
Cutter styleKSHR
Cutting directionRight Hand
Hub diameter4.7220
Insert holding methodScrew
Maximum body diameter6.4320
Maximum cutting diameter6.4310
Maximum depth of cut0.1770
Maximum rpm4100
Minimum cutting diameter in6
Number of cutter inserts10
Number of flutes10
Overall height2.3800
Pitch typeExtra Coarse
