Kennametal

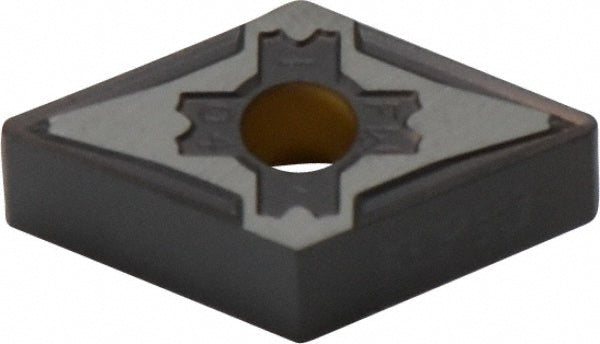

DNMG150408RN Carbide Insert, Grade KCP10, TiCN - Kennametal 3749362
MFR# 3749362ISO/ANSI# DNMG110404Series KENLOC
$27.93List $34.09
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3749362 is a DNMG150408RN carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMG331
Ansi size code331
Chip breakerFW
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMG331FW
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408RN
Iso insert codeDNMG110404
Iso size code110404
Length range0.7000 - 10.0000
Manufacturers catalog number3749362
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeYes
