Kennametal

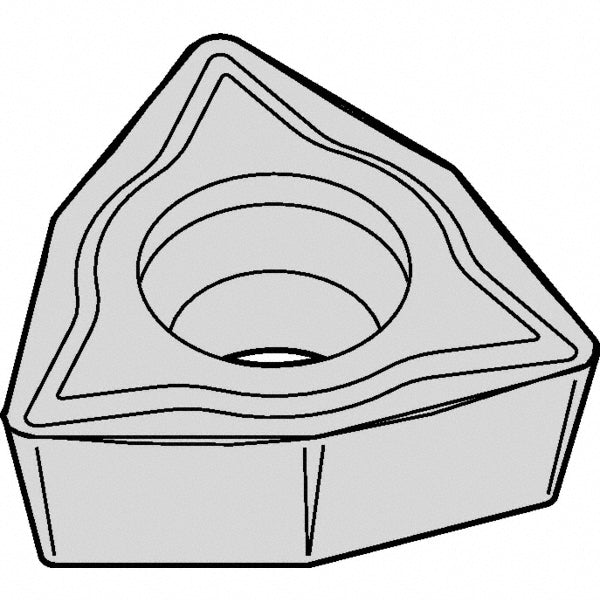

W - Trigon 80-Deg 1/4" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3749416
MFR# 3749416ISO/ANSI# WPMT110204Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3749416 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWPMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle80
Industry standard numberWPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3418
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code2151
Insert styleWPMT
Insert thickness in3/32
Iso insert codeWPMT110204
Iso size code110204
Length range0.3000 - 0.4000
Manufacturers catalog number3749416
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3418
Wiper edgeNo
