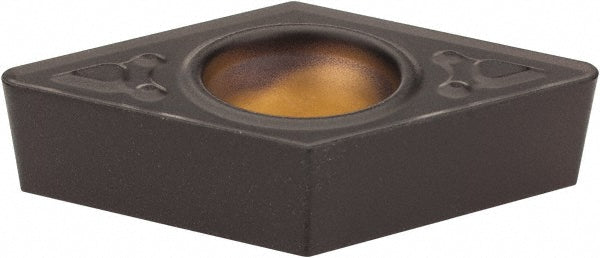

Diamond 55 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3749450

Kennametal

Diamond 55 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3749450

MFR# 3749450ISO/ANSI# DCMT3252MFSeries Screw-On

$23.56List $28.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCP10
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3749450 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Length range0.7000 - 10.0000
Manufacturers catalog number3749450
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
