Kennametal

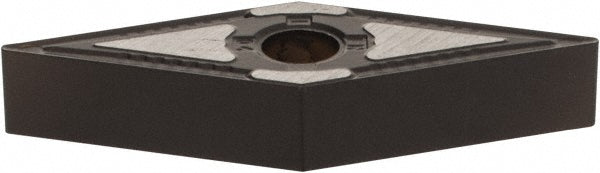

Diamond 35 3/8" IC Carbide Insert, Grade KCP05, TiCN - Kennametal 3751492
MFR# 3751492ISO/ANSI# VNMG331FNSeries KENLOC
$31.29List $38.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKCP05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3751492 is a carbide indexable insert, grade KCP05, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331FN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number3751492
Manufacturer gradeKCP05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
