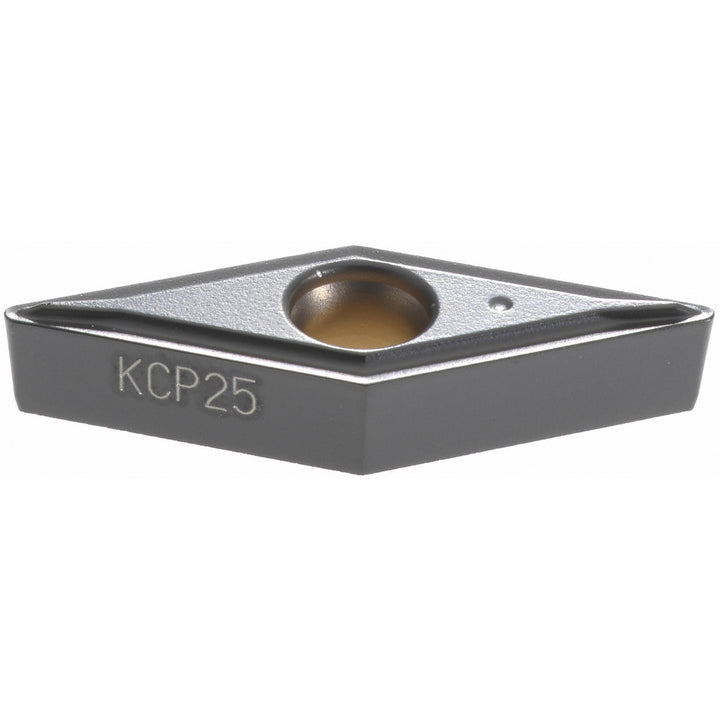

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751607

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751607

MFR# 3751607ISO/ANSI# VBMT110304Series Screw-On

$34.96List $42.68 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3751607 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeVBMT221
Ansi size code221
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle35
Industry standard numberVBMT221LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number3751607
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
