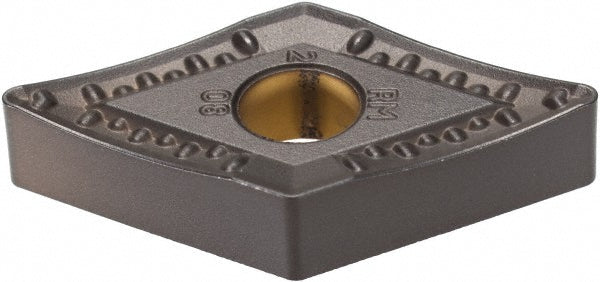

Diamond 55 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751734

Kennametal

Diamond 55 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751734

MFR# 3751734ISO/ANSI# DNMM432RMSeries KENLOC

$28.19List $34.42 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3751734 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerRM
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMM432RM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMM
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number3751734
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
