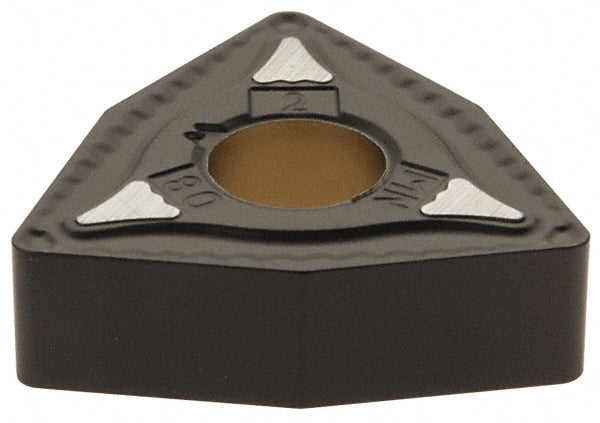

Trigon 1/2" IC Carbide Insert, Grade KCP40, TiN - Kennametal 3751826

Kennametal

Trigon 1/2" IC Carbide Insert, Grade KCP40, TiN - Kennametal 3751826

MFR# 3751826ISO/ANSI# WNMG432MNSeries KENLOC

$25.82List $31.52 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCP40
MaterialCarbide
CoatingTiN

Description

The Kennametal 3751826 is a carbide indexable insert, grade KCP40, TiN coated. Suited for steel, stainless steel.

Specifications

Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Length range0.6500 - 0.7000
Manufacturers catalog number3751826
Manufacturer gradeKCP40
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
