Kennametal

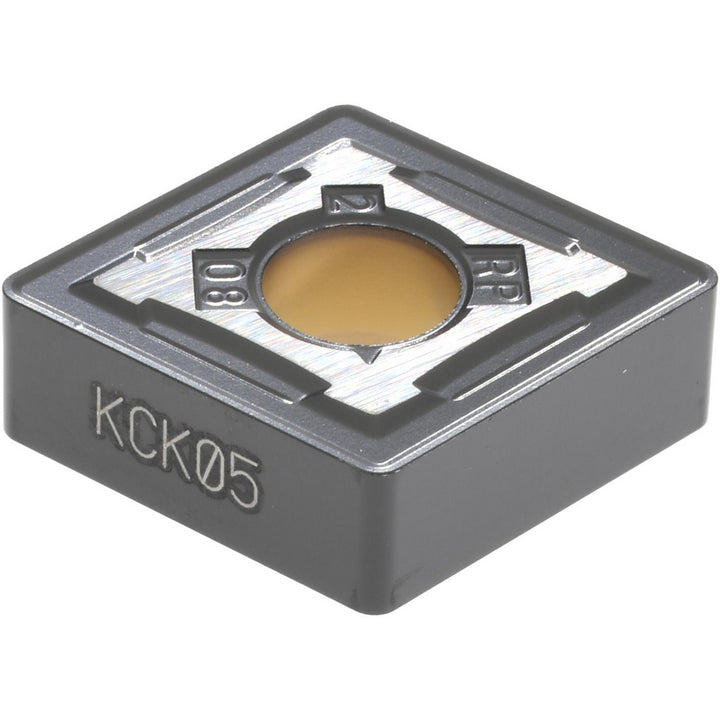

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KCK05, TiCN - Kennametal 3751862
MFR# 3751862ISO/ANSI# CNMG120408Series KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3751862 is a carbide indexable insert, grade KCK05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3751862
Manufacturer gradeKCK05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
