Kennametal

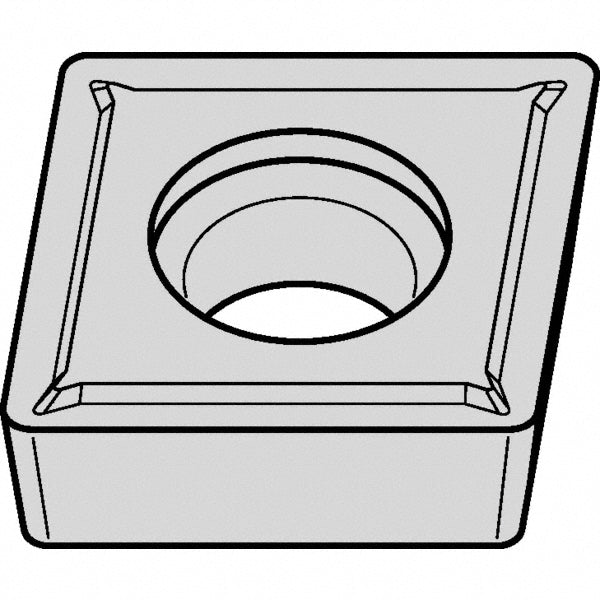

Diamond 80 1/4" IC Carbide Insert, Grade KCK15, TiN - Kennametal 3751986
MFR# 3751986ISO/ANSI# CCMT2152LFSeries Screw-On
$25.46List $31.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCK15
MaterialCarbide
CoatingTiN
Description
The Kennametal 3751986 is a carbide indexable insert, grade KCK15, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCCMT2152LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2152
Insert styleCCMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number3751986
Manufacturer gradeKCK15
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
