Kennametal

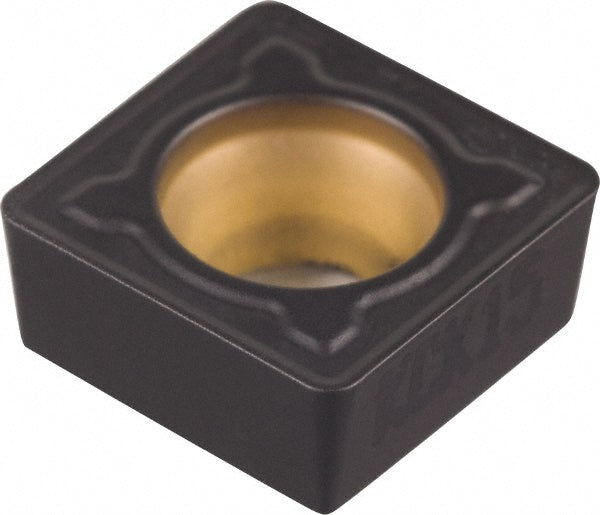

S - Square 3/8" IC Carbide Insert, Grade KCK15, TiN - Kennametal 3752039
MFR# 3752039ISO/ANSI# SCMT09T308Series Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKCK15
MaterialCarbide
CoatingTiN
Description
The Kennametal 3752039 is a carbide indexable insert, grade KCK15, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSCMT3252
Ansi size code3252
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle90
Industry standard numberSCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Iso insert codeSCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3752039
Manufacturer gradeKCK15
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
