Kennametal

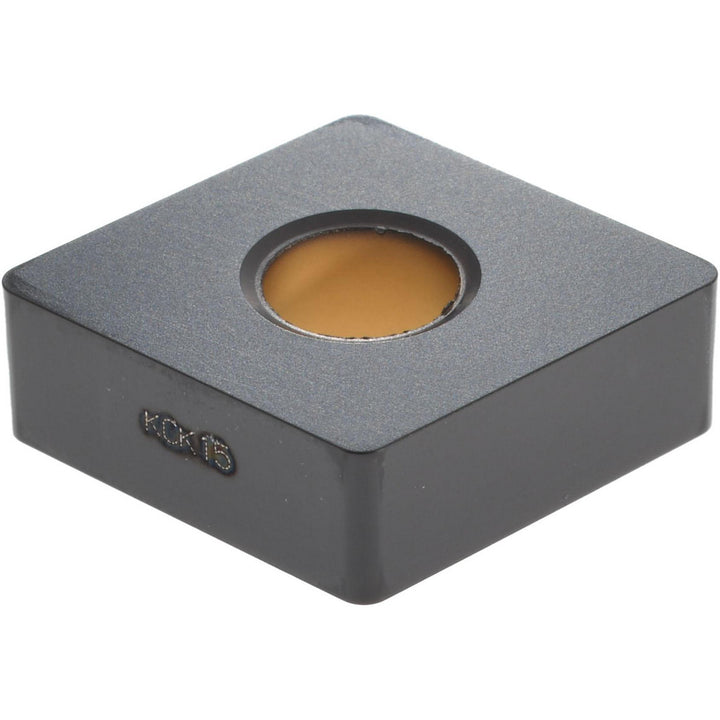

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KCK15, TiN - Kennametal 3752128
MFR# 3752128ISO/ANSI# CNMA120408Series KENLOC
$23.11List $28.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK15
MaterialCarbide
CoatingTiN
Description
The Kennametal 3752128 is a carbide indexable insert, grade KCK15, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso insert codeCNMA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3752128
Manufacturer gradeKCK15
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
