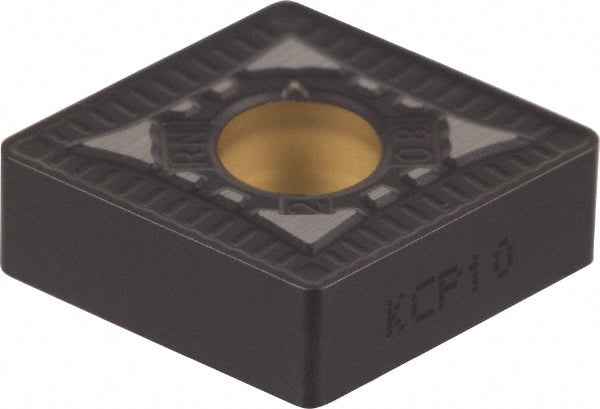

Diamond 80 1/2" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753288

Kennametal

Diamond 80 1/2" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753288

MFR# 3753288ISO/ANSI# CNMG433RNSeries KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCP10
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3753288 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerRN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG433RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number3753288
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
