Kennametal

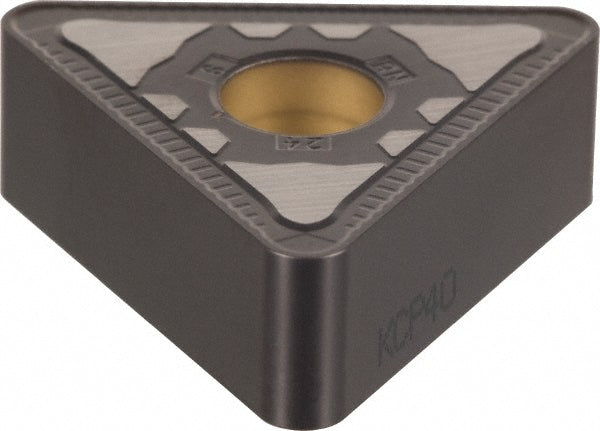

T - Triangle 5/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753357
MFR# 3753357ISO/ANSI# TNMG270612Series KENLOC
$49.11List $59.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753357 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG543
Ansi size code543
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle60
Industry standard numberTNMG543RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso insert codeTNMG270612
Iso size code270612
Length range0.7000 - 10.0000
Manufacturers catalog number3753357
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
