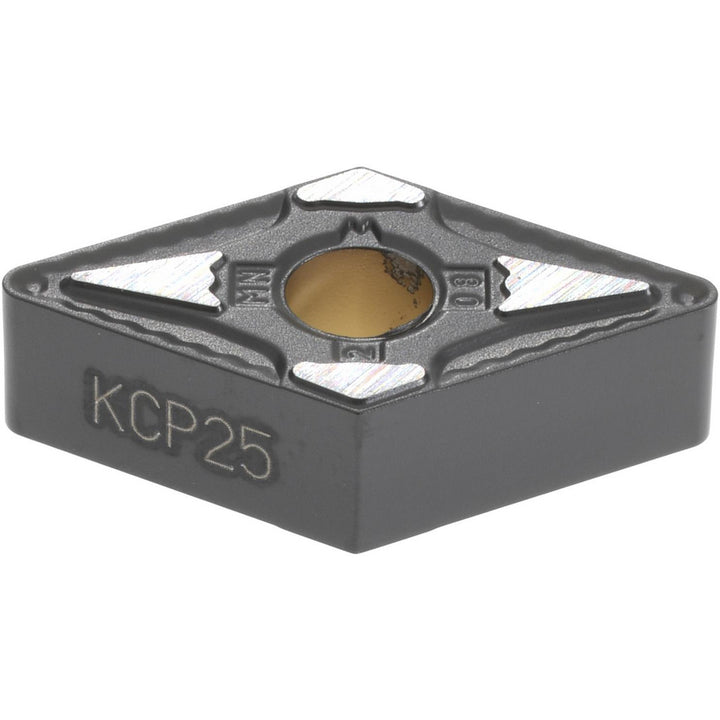

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753445

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753445

MFR# 3753445ISO/ANSI# DNMG110408Series KENLOC

$22.71List $27.73 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3753445 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeDNMG332
Ansi size code332
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number3753445
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
