Kennametal

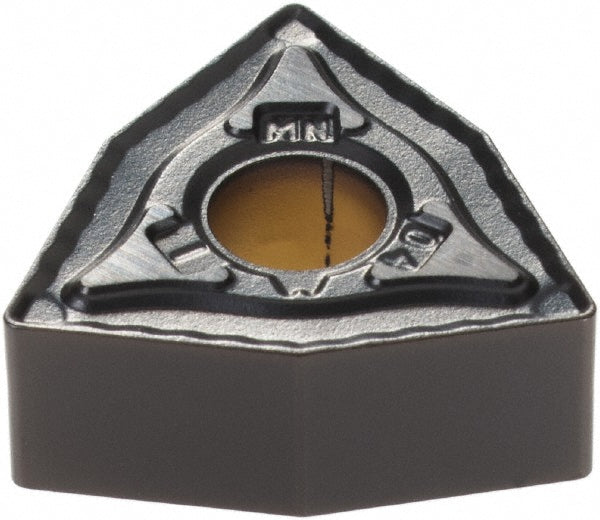

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753472
MFR# 3753472ISO/ANSI# WNMG060404Series KENLOC
$21.90List $26.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753472 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWNMG331
Ansi size code331
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle80
Industry standard numberWNMG331MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG060404
Iso size code060404
Length range0.5000 - 0.6000
Manufacturers catalog number3753472
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
