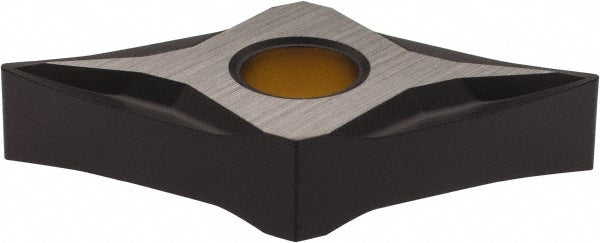

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753481

Kennametal

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753481

MFR# 3753481ISO/ANSI# DNMP150404Series KENLOC

$34.50List $42.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3753481 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeDNMP431
Ansi size code431
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle55
Industry standard numberDNMP431K
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1920
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMP
Insert thickness in3/16
Iso insert codeDNMP150404
Iso size code150404
Length range0.7000 - 10.0000
Manufacturers catalog number3753481
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
