Kennametal

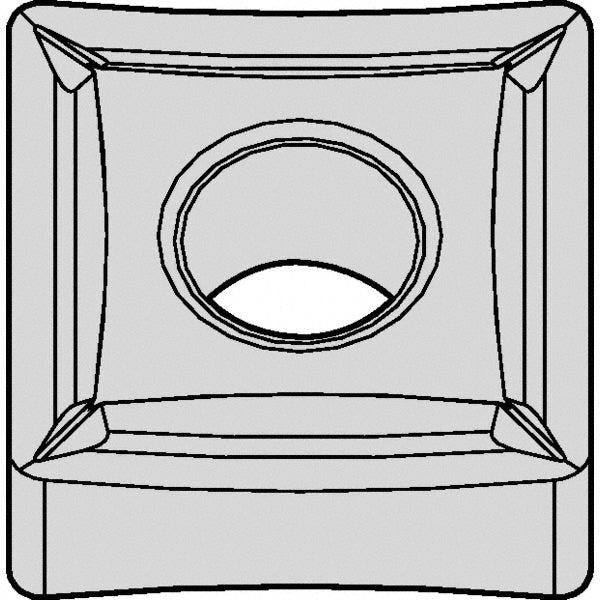

S - Square 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753484
MFR# 3753484ISO/ANSI# SNMP120408Series KENLOC
$24.89List $30.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753484 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMP432
Ansi size code432
Chip breakerK
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle90
Industry standard numberSNMP432K
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMP
Insert thickness in3/16
Iso insert codeSNMP120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3753484
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
