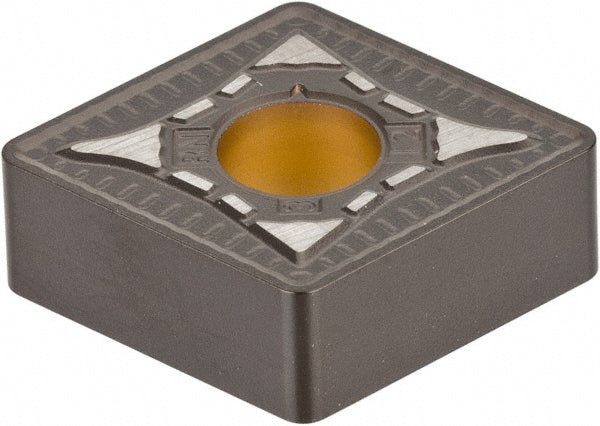

Diamond 5/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753506

Kennametal

Diamond 5/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753506

MFR# 3753506ISO/ANSI# CNMG543RNSeries KENLOC

$33.64List $41.06 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3753506 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerRN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Length range0.6000 - 0.6500
Manufacturers catalog number3753506
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
