Kennametal

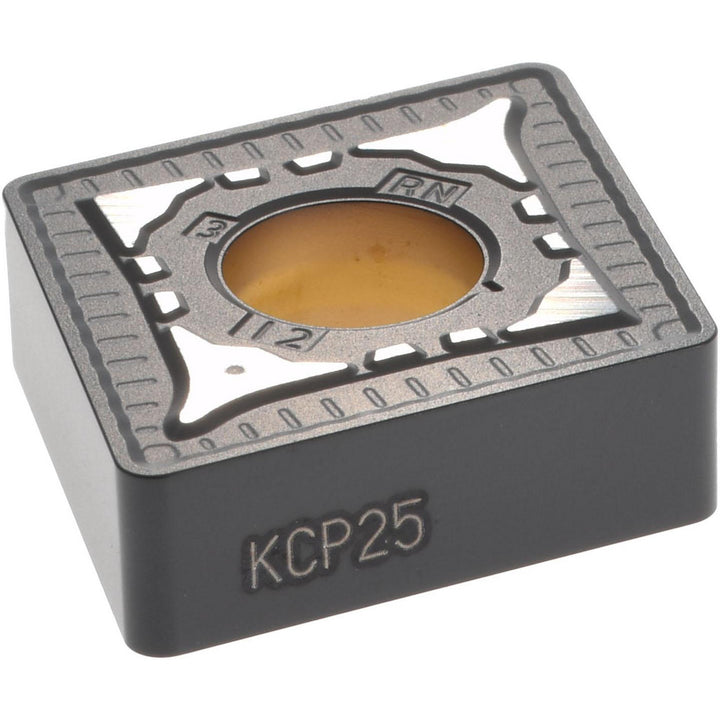

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753509
MFR# 3753509ISO/ANSI# CNMG190612Series KENLOC
$43.39List $52.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753509 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG643
Ansi size code643
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMG643RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number3753509
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
