Kennametal

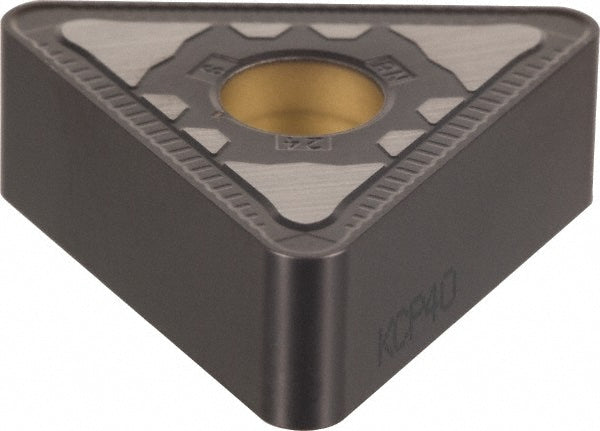

T - Triangle 3/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753554
MFR# 3753554ISO/ANSI# TNMG330924Series KENLOC
$84.32List $102.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeT - Triangle
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753554 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG666
Ansi size code666
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3125
Included angle60
Industry standard numberTNMG666RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2992
Insert materialCarbide
Insert shapeT - Triangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso insert codeTNMG330924
Iso size code330924
Length range0.7000 - 10.0000
Manufacturers catalog number3753554
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.2992
Wiper edgeNo
