Kennametal

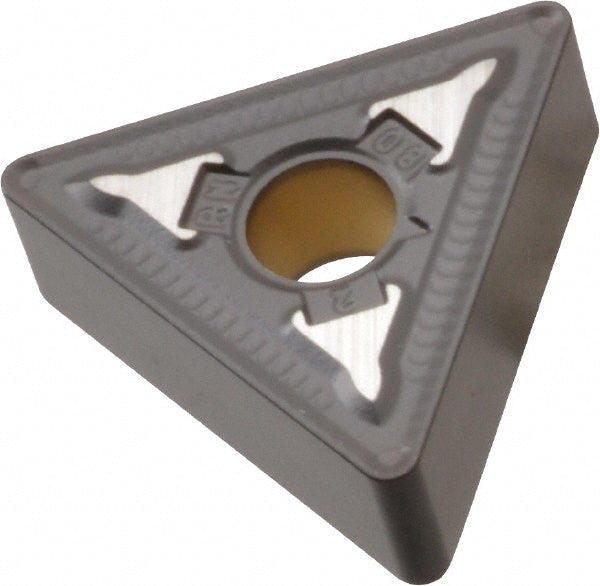

T - Triangle 3/8" IC Carbide Insert, Grade KCP30, TiN - Kennametal 3753654
MFR# 3753654ISO/ANSI# TNMG160408Series KENLOC
$20.75List $25.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3753654 is a carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Ansi insert codeTNMG332
Ansi size code332
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332RN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturers catalog number3753654
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
