Kennametal

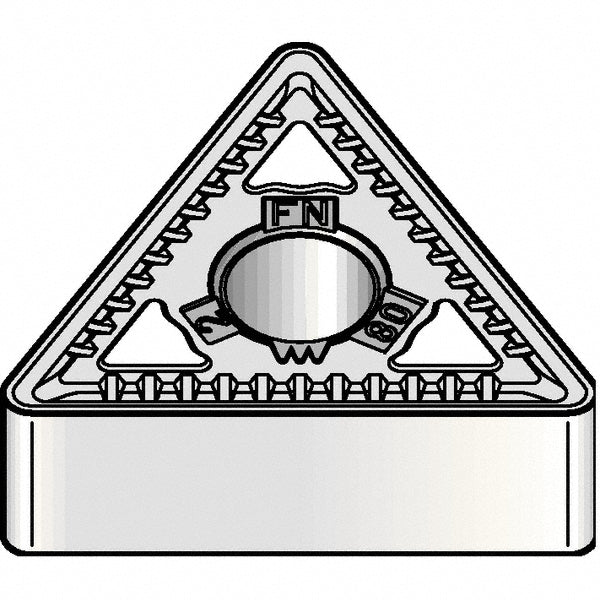

Triangle 1/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753714
MFR# 3753714ISO/ANSI# TNMG221FNSeries KENLOC
$16.95List $20.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753714 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0890
Included angle60
Industry standard numberTNMG221FN
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTNMG
Insert thickness in1/8
Length range0.4000 - 0.5000
Manufacturers catalog number3753714
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
