Kennametal

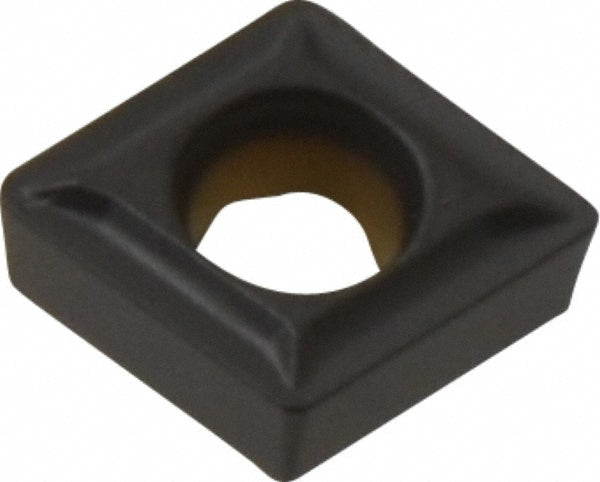

CCMT120404LF Carbide Insert, Grade KCP25, TiCN - Kennametal 3753727
MFR# 3753727ISO/ANSI# CCMT2151LFSeries Screw-On
$25.46List $31.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753727 is a CCMT120404LF carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT120404LF
Length range0.0000 - 0.3000
Manufacturers catalog number3753727
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
