Kennametal

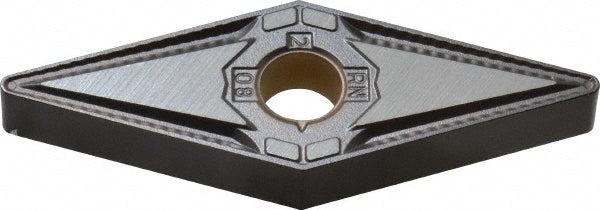

V - Diamond (Rhombic) 35-Deg 1/2" IC Carbide Insert, Grade KCP40, TiN - Kennametal 3754014
MFR# 3754014ISO/ANSI# VNMG220408Series KENLOC
$40.57List $49.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP40
MaterialCarbide
CoatingTiN
Description
The Kennametal 3754014 is a carbide indexable insert, grade KCP40, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeVNMG432
Ansi size code432
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle35
Industry standard numberVNMG432RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso insert codeVNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number3754014
Manufacturer gradeKCP40
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
