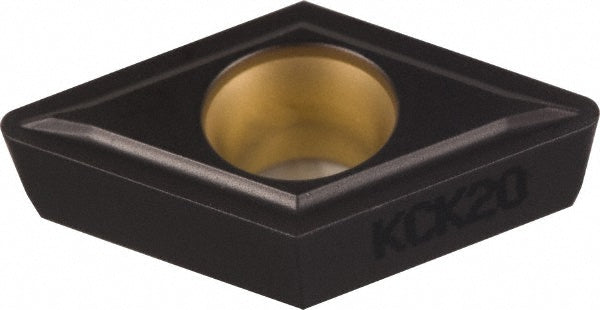

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3755492
MFR# 3755492ISO/ANSI# DPMT11T304Series Screw-On
$31.45List $38.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3755492 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDPMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDPMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3251
Insert styleDPMT
Insert thickness in5/32
Iso insert codeDPMT11T304
Iso size code11T304
Length range0.7000 - 10.0000
Manufacturers catalog number3755492
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
