Kennametal

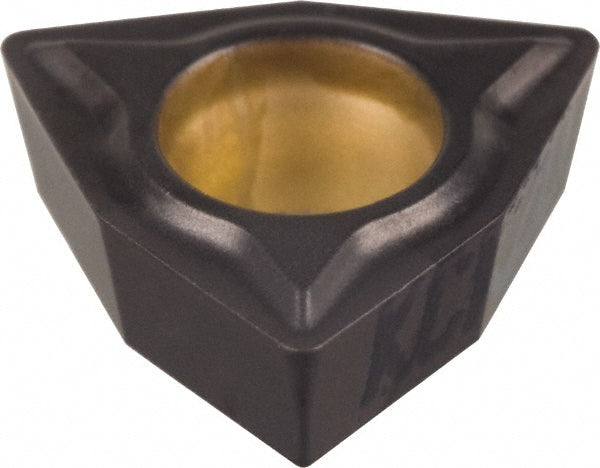

W - Trigon 80-Deg 1/4" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3755528
MFR# 3755528ISO/ANSI# WPMT110204Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3755528 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWPMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle80
Industry standard numberWPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3418
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code2151
Insert styleWPMT
Insert thickness in3/32
Iso insert codeWPMT110204
Iso size code110204
Length range0.3000 - 0.4000
Manufacturers catalog number3755528
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3418
Wiper edgeNo
