Kennametal

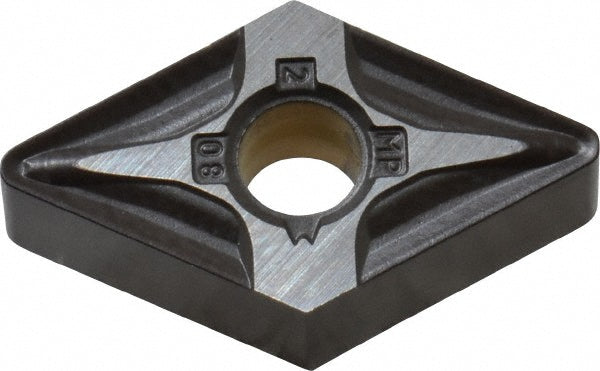

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3755693
MFR# 3755693ISO/ANSI# DNMG110408Series KENLOC
$27.70List $33.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCM15
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3755693 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNMG332
Ansi size code332
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9160
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number3755693
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
