Kennametal

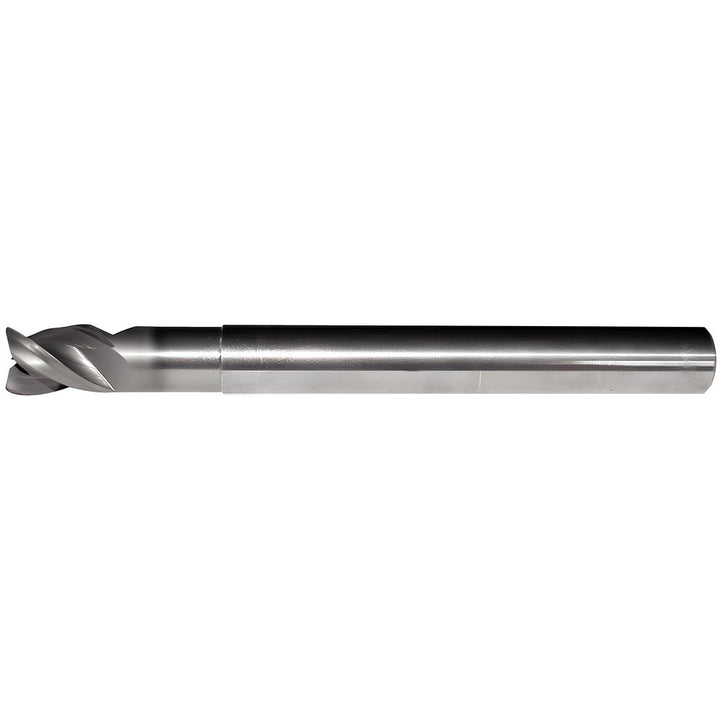

1/4" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3755897

MFR# 3755897Series ABDE

$121.23List $155.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3755897 is a 1/4 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/8 length of cut, 4 overall length. Series ABDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-CV Form AD

Helix styleHigh

Length of cut in3/8

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/4

Mill diameter tolerance+0.000000/-0.000350 in

Neck diameter0.2342

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in1/4

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
