Kennametal

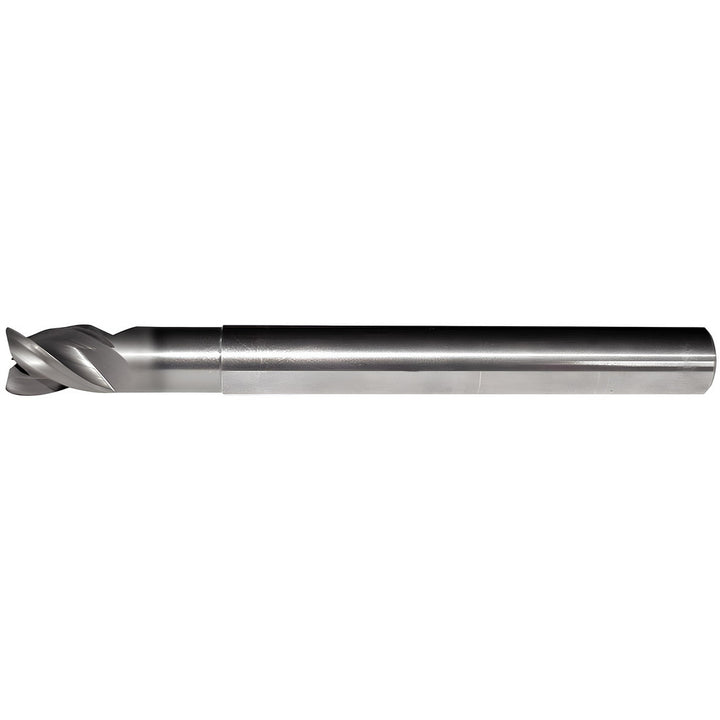

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3755910

MFR# 3755910Series ABDE

$174.18List $223.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3755910 is a 1/2 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series ABDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance+0.000000/-0.000430 in

Neck diameter0.4685

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/4

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
