Kennametal

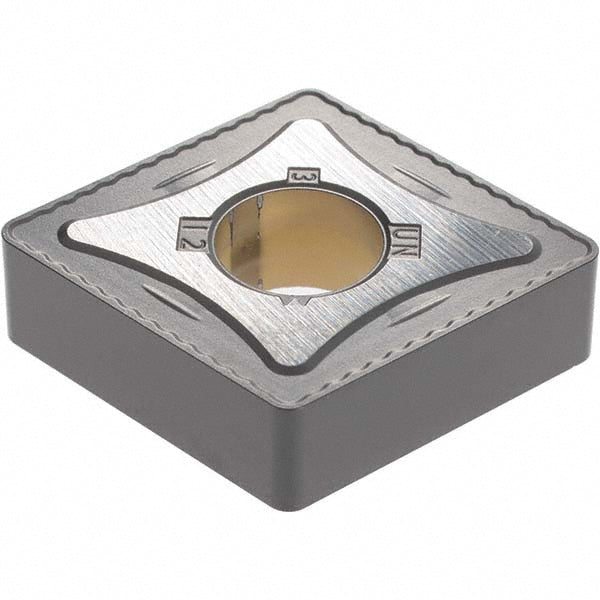

Diamond 80 3/4" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757594
MFR# 3757594ISO/ANSI# CNMG643UNSeries KENLOC
$52.17List $63.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757594 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Chip breakerUN
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3125
Included angle80degree
Industry standard numberCNMG643UN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Length range0.7000 - 10.0000
Manufacturers catalog number3757594
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
