Kennametal

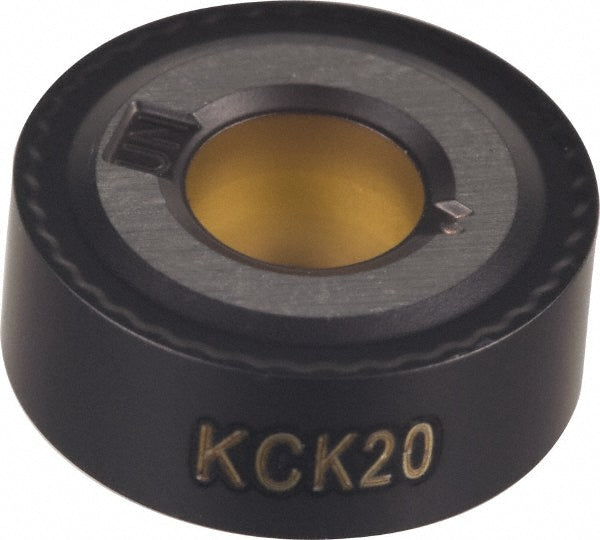

R - Round 1/2" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757604
MFR# 3757604ISO/ANSI# RNMG120400Series KENLOC
$22.07List $26.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757604 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeRNMG43
Ansi size code43
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/4
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle360
Industry standard numberRNMG43UN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso insert codeRNMG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number3757604
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
