Kennametal

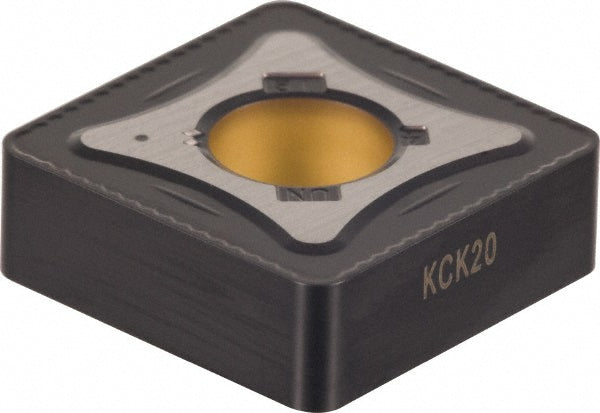

S - Square 3/4" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757610
MFR# 3757610ISO/ANSI# SNMG190612Series KENLOC
$39.44List $48.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeS - Square
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757610 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG643
Ansi size code643
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle90
Industry standard numberSNMG643UN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso insert codeSNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number3757610
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
