Kennametal

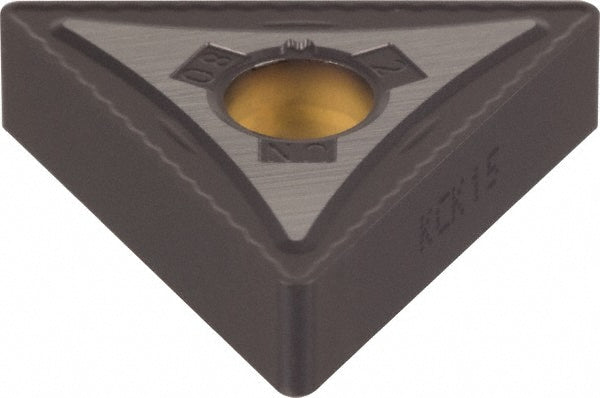

T - Triangle 1/2" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757616
MFR# 3757616ISO/ANSI# TNMG220412Series KENLOC
$27.43List $33.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757616 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG433
Ansi size code433
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle60
Industry standard numberTNMG433UN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number3757616
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
