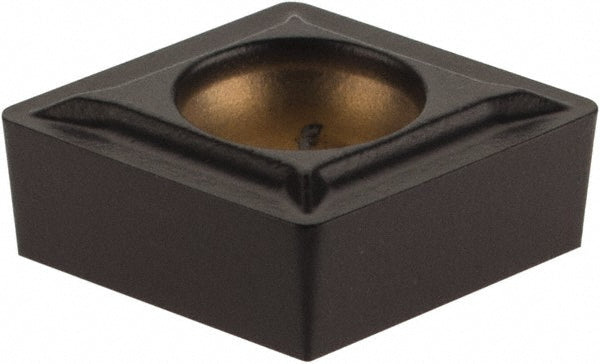

Diamond 80 1/4" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758087

Kennametal

Diamond 80 1/4" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758087

MFR# 3758087ISO/ANSI# CCMT2151LFSeries Screw-On

$25.46List $31.07 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3758087 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number3758087
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
