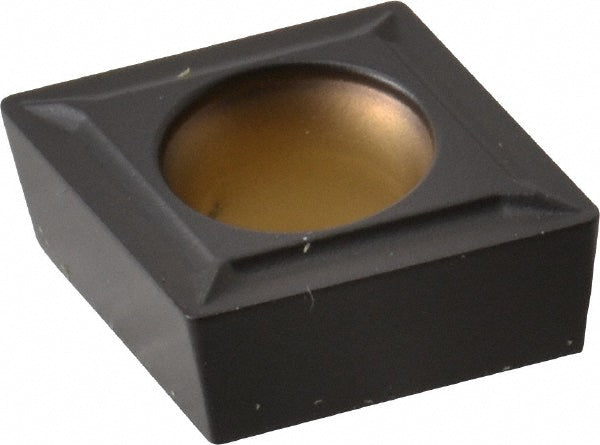

Diamond 80 3/8" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758088

Kennametal

Diamond 80 3/8" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758088

MFR# 3758088ISO/ANSI# CCMT3251LFSeries Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3758088 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number3758088
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
