Kennametal

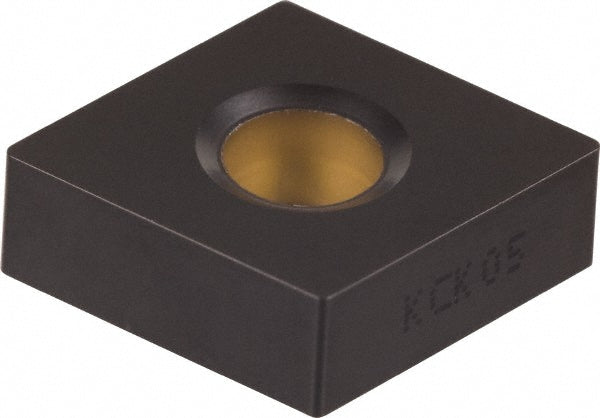

Diamond 80 5/8" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758138
MFR# 3758138ISO/ANSI# CNMA543Series KENLOC
$42.05List $51.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3758138 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMA543
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Length range0.6000 - 0.6500
Manufacturers catalog number3758138
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
