Kennametal

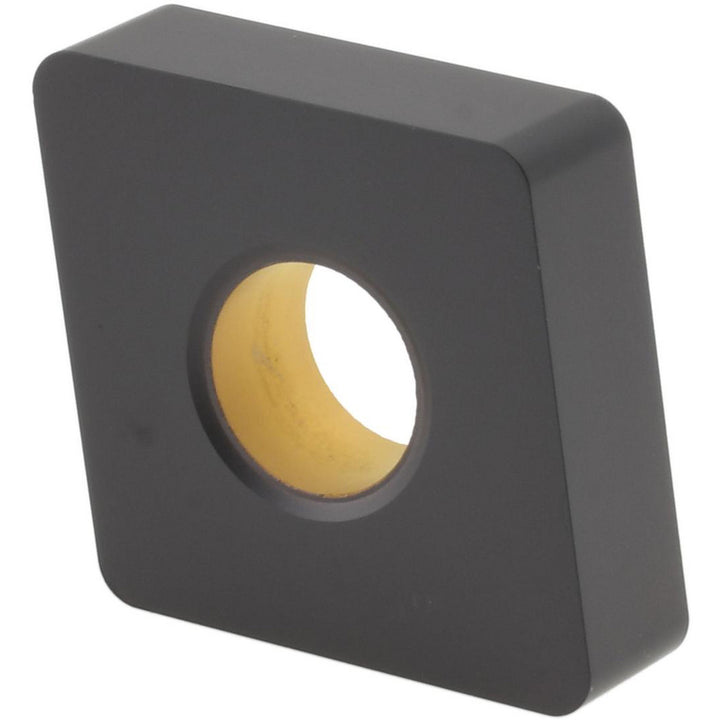

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758142
MFR# 3758142ISO/ANSI# CNMA190616Series KENLOC
$51.57List $62.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3758142 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMA644
Ansi size code644
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/16
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMA644
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code644
Insert styleCNMA
Insert thickness in1/4
Iso insert codeCNMA190616
Iso size code190616
Length range0.7000 - 10.0000
Manufacturers catalog number3758142
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
