Kennametal

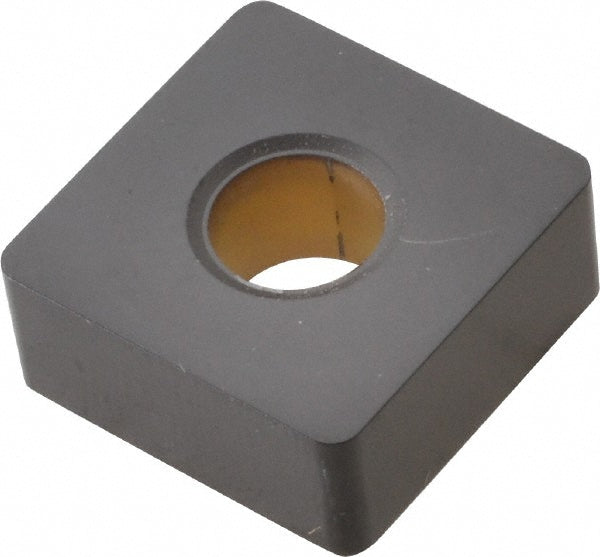

SNMA543 Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758152
MFR# 3758152ISO/ANSI# SNMA543Series KENLOC
$36.62List $44.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3758152 is a SNMA543 carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMA543
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMA
Insert thickness in1/4
Iso codeSNMA543
Length range0.6000 - 0.6500
Manufacturers catalog number3758152
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
