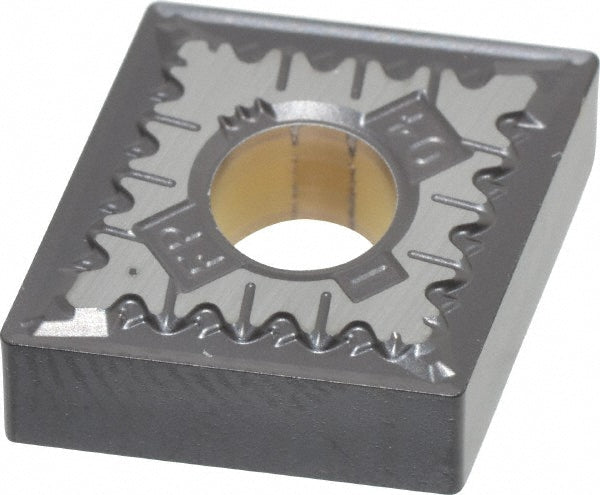

Diamond 80 1/2" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3758783

Kennametal

Diamond 80 1/2" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3758783

MFR# 3758783ISO/ANSI# CNMG431FPSeries KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCM15
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3758783 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG431FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number3758783
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
