Kennametal

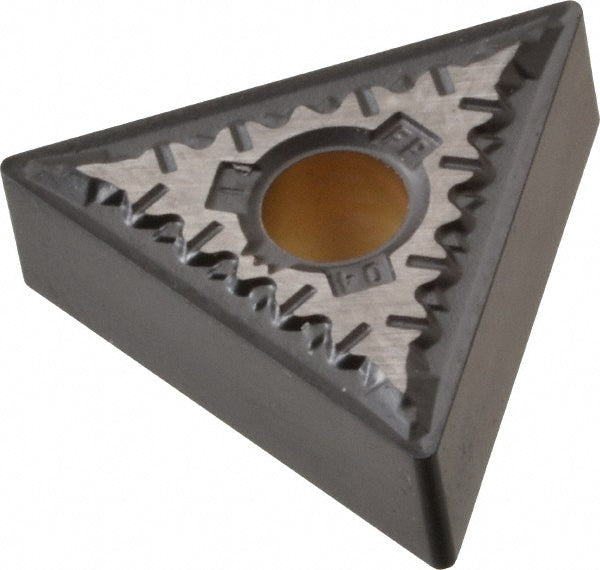

T - Triangle 3/8" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3758797
MFR# 3758797ISO/ANSI# TNMG160404Series KENLOC
$20.75List $25.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCM15
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3758797 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTNMG331
Ansi size code331
Chip breakerFP
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNMG331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG160404
Iso size code160404
Length range0.6000 - 0.6500
Manufacturers catalog number3758797
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
