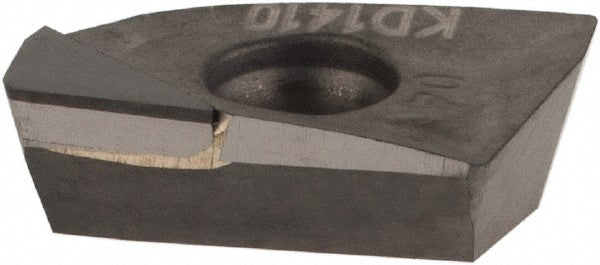

EDCT10T304PDFR-PCD Diamond Tipped Insert, Grade KD1410 - Kennametal 3759083
MFR# 3759083ISO/ANSI# EDCT10T304PDFR-PCDCat# EDCT10T304PDFR-PCDSeries EDCT
$132.05List $161.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKD1410
MaterialDiamond Tipped
Description
The Kennametal 3759083 is a EDCT10T304PDFR-PCD diamond tipped indexable insert, grade KD1410. Suited for non-ferrous metal.
Specifications
Ansi codeEC1004FR-PCD
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityMill 1-10
Cutting edge styleSharp
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialDiamond Tipped
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleEDCT
Iso codeEDCT10T304PDFR-PCD
Length0.4728
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T304PDFR-PCD
Manufacturer gradeKD1410
Material applicationNon-Ferrous Metal
Material gradePCD
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
