Kennametal

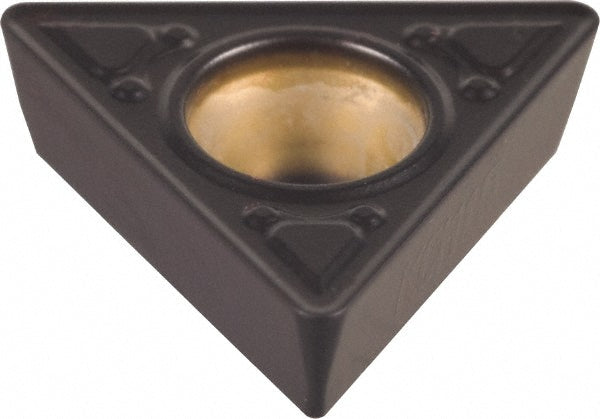

T - Triangle 1/4" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760338
MFR# 3760338ISO/ANSI# TPMT110208Series Screw-On
$28.28List $34.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCM25
MaterialCarbide
CoatingTiN
Description
The Kennametal 3760338 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTPMT2152
Ansi size code2152
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Industry standard numberTPMT2152MF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2152
Insert styleTPMT
Insert thickness in3/32
Iso insert codeTPMT110208
Iso size code110208
Length range0.4000 - 0.5000
Manufacturers catalog number3760338
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
