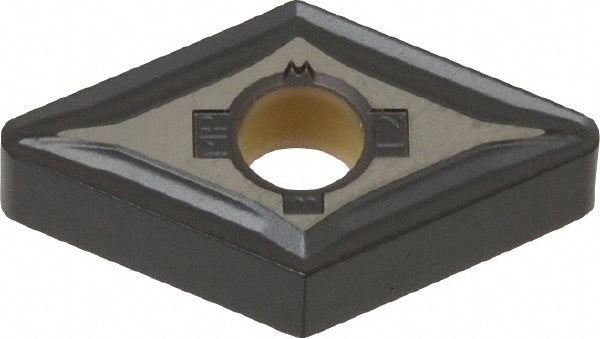

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760356

Kennametal

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760356

MFR# 3760356ISO/ANSI# DNMG150412Series KENLOC

$33.09List $40.39 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3760356 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDNMG433
Ansi size code433
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Industry standard numberDNMG433MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG150412
Iso size code150412
Length range0.7000 - 10.0000
Manufacturers catalog number3760356
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
