Kennametal

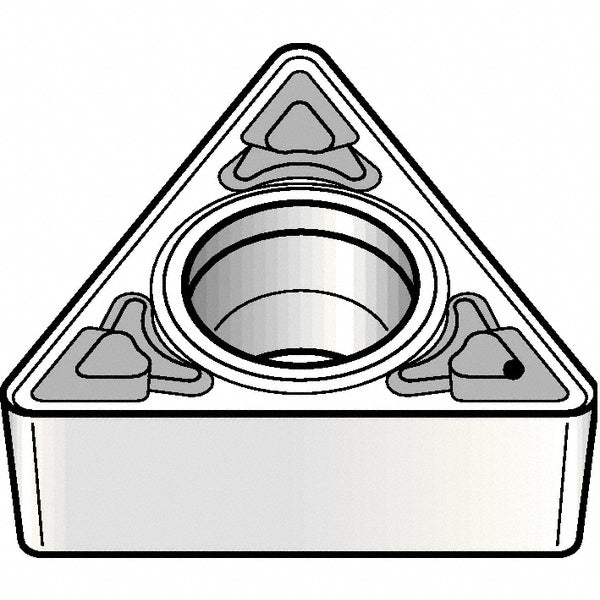

T - Triangle 3/8" IC Carbide Insert, Grade KCM35, TiN - Kennametal 3760411
MFR# 3760411ISO/ANSI# TCMT16T308Series Screw-On
$34.08List $41.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCM35
MaterialCarbide
CoatingTiN
Description
The Kennametal 3760411 is a carbide indexable insert, grade KCM35, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTCMT3252
Ansi size code3252
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3252
Insert styleTCMT
Insert thickness in5/32
Iso insert codeTCMT16T308
Iso size code16T308
Length range0.6000 - 0.6500
Manufacturers catalog number3760411
Manufacturer gradeKCM35
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
